High Capacity Built Into the Bike

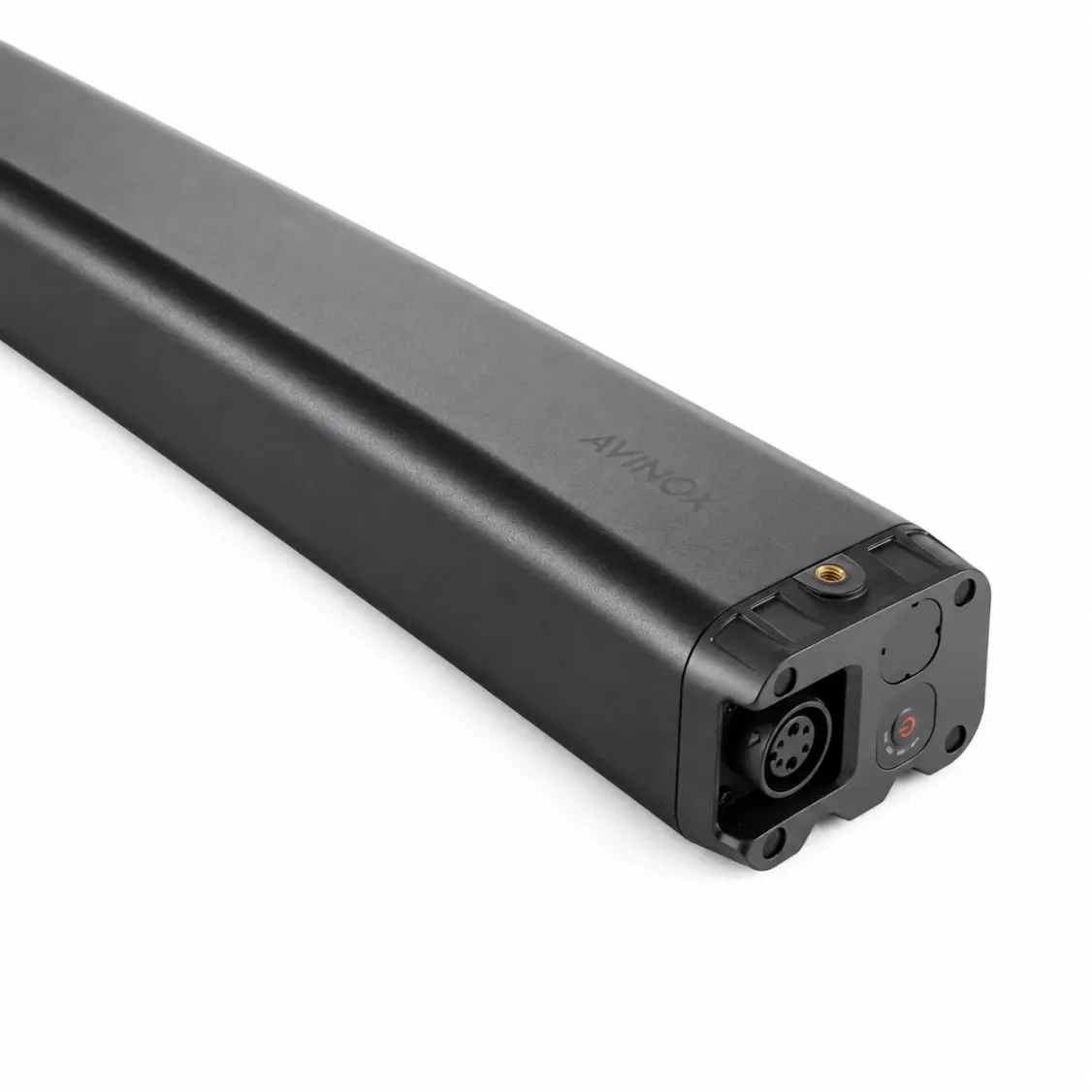

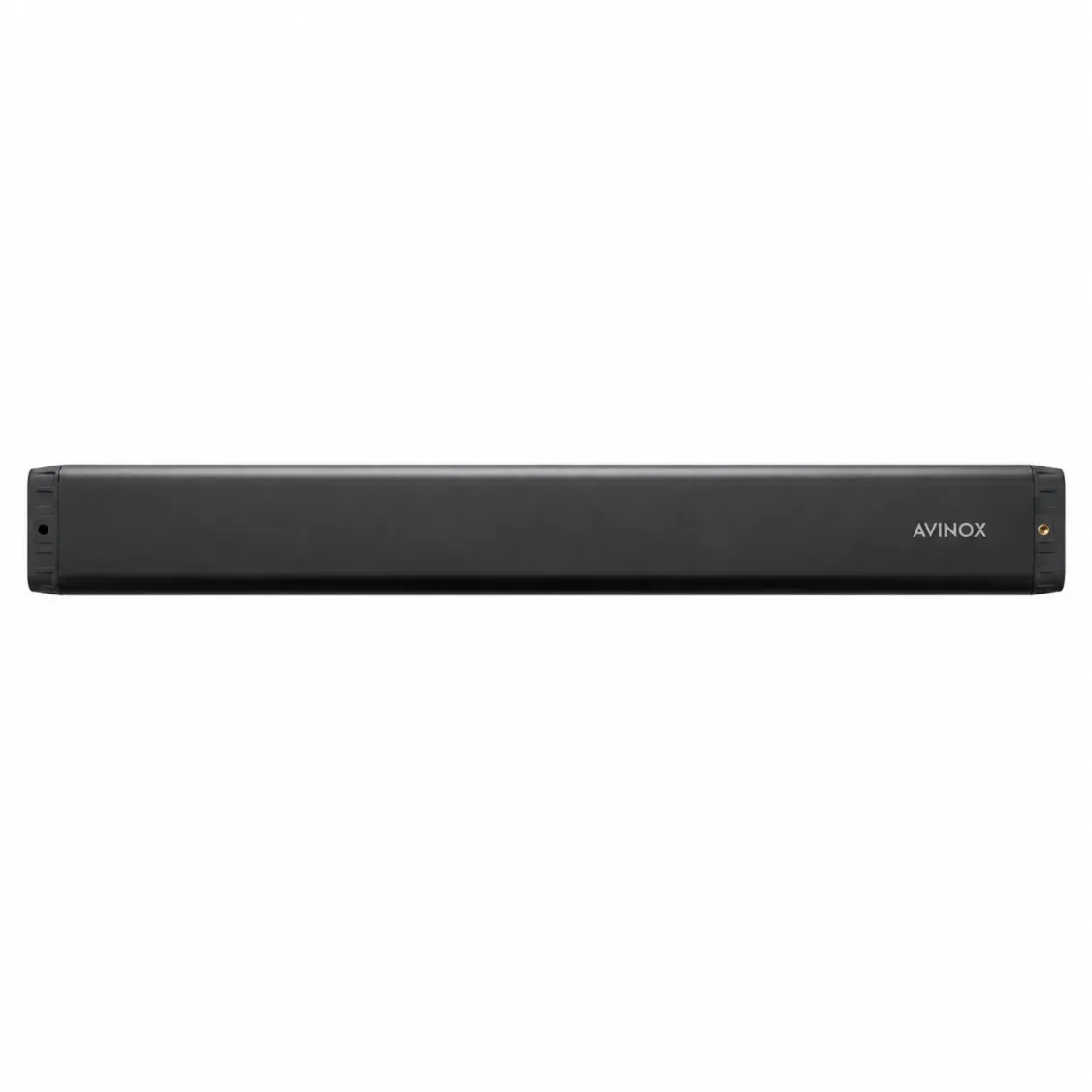

The FS800 is a fixed 800Wh battery for bikes using the Avinox Drive System. It sits fully integrated inside the frame rather than coming out for charging, combining 22.3Ah of capacity with a relatively compact 3.74kg package. Fast-charging support and built-in battery management make it well suited to longer eMTB rides and regular high-use setups.

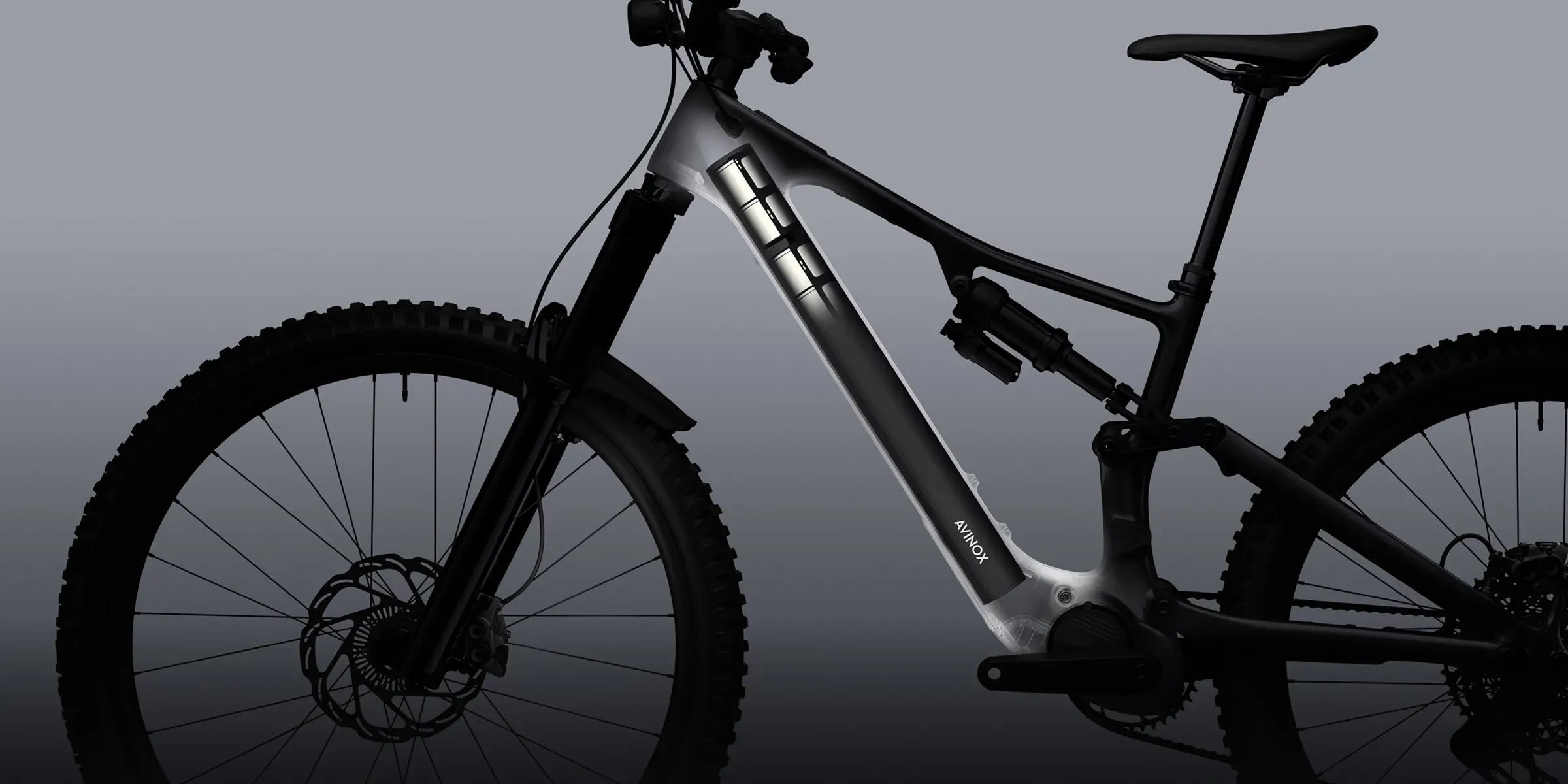

• Fixed installation keeps the battery fully integrated inside the bike frame
• 800Wh capacity and 22.3Ah give the Avinox system substantial energy for longer rides
• 214Wh/kg energy density packs high capacity into an approximately 3.74kg battery

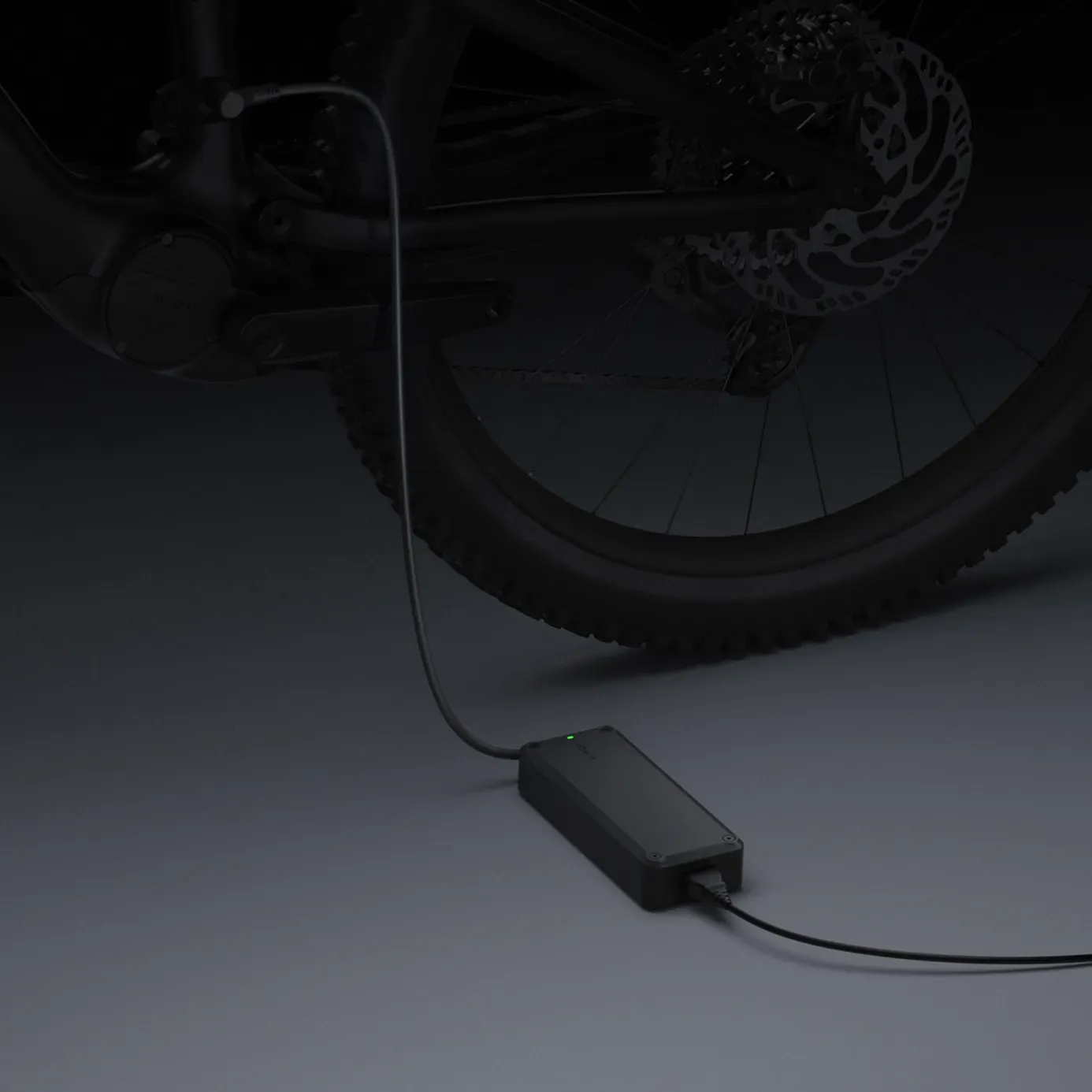

• Supports the Avinox 508W fast charger, reaching 80% in about 1 hour 45 minutes
• Smart charging features include charge-limit settings, self-discharge, health estimation and active voltage reduction
• IP56 protection adds resistance against dust and water
• Compatible with Avinox RS600 and RS480 secondary-battery setups when the required mounting and connection hardware is used
