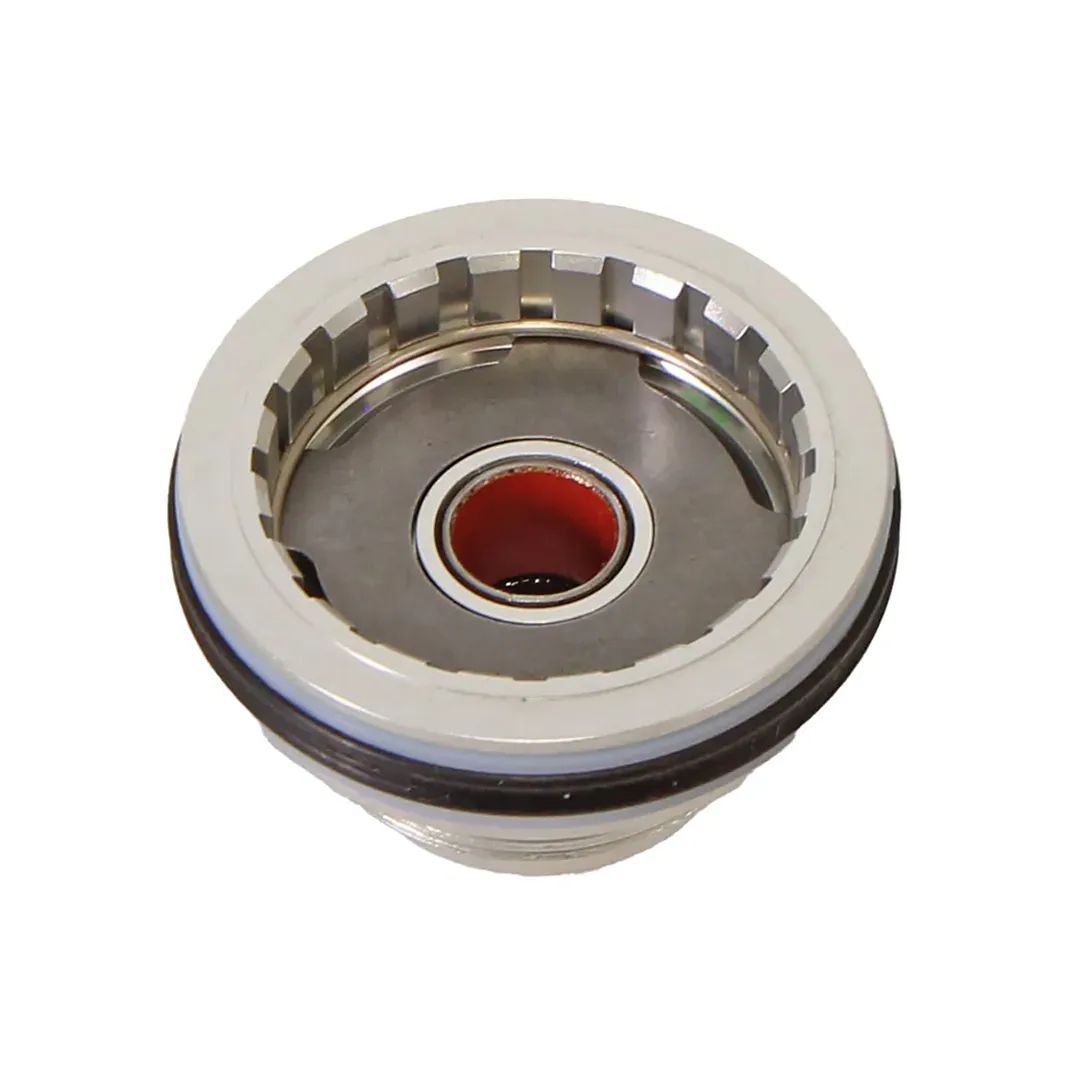

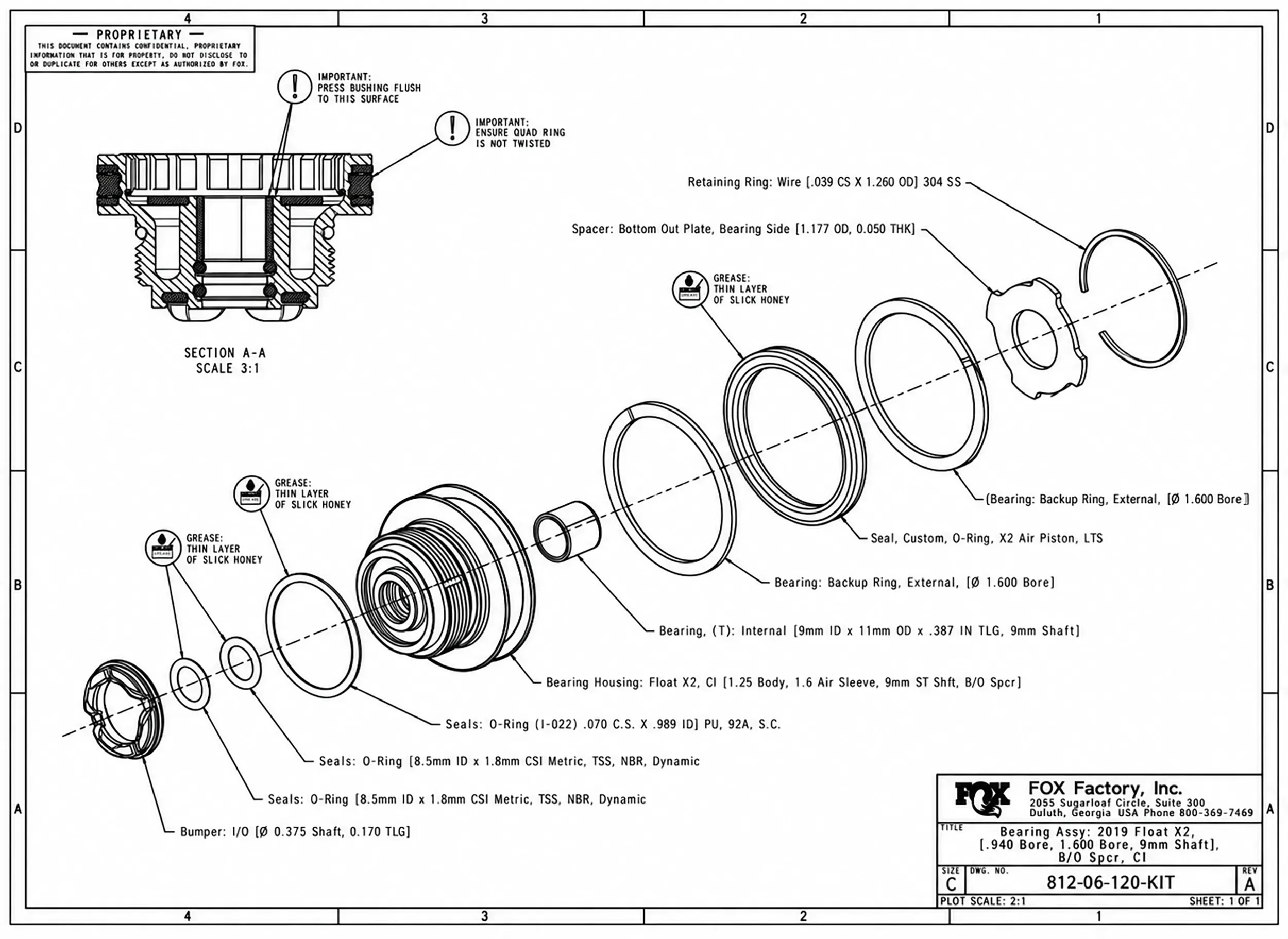

Replacement bearing assembly for the 2019 Fox Float X2 with a .940" body bore, 1.600" air sleeve bore and 9mm shaft. The assembly includes the bearing housing and the internal sealing and bottom-out components shown in the FOX service drawing.

Included

• Bearing housing
• Internal bearing 9mm ID × 11mm OD
• 2 × external backup rings
• Custom X2 air piston O-ring
• O-ring -022
• 2 × 8.5mm ID × 1.8mm O-rings
• Top-out bumper
• Bottom-out plate spacer
• Wire retaining ring
