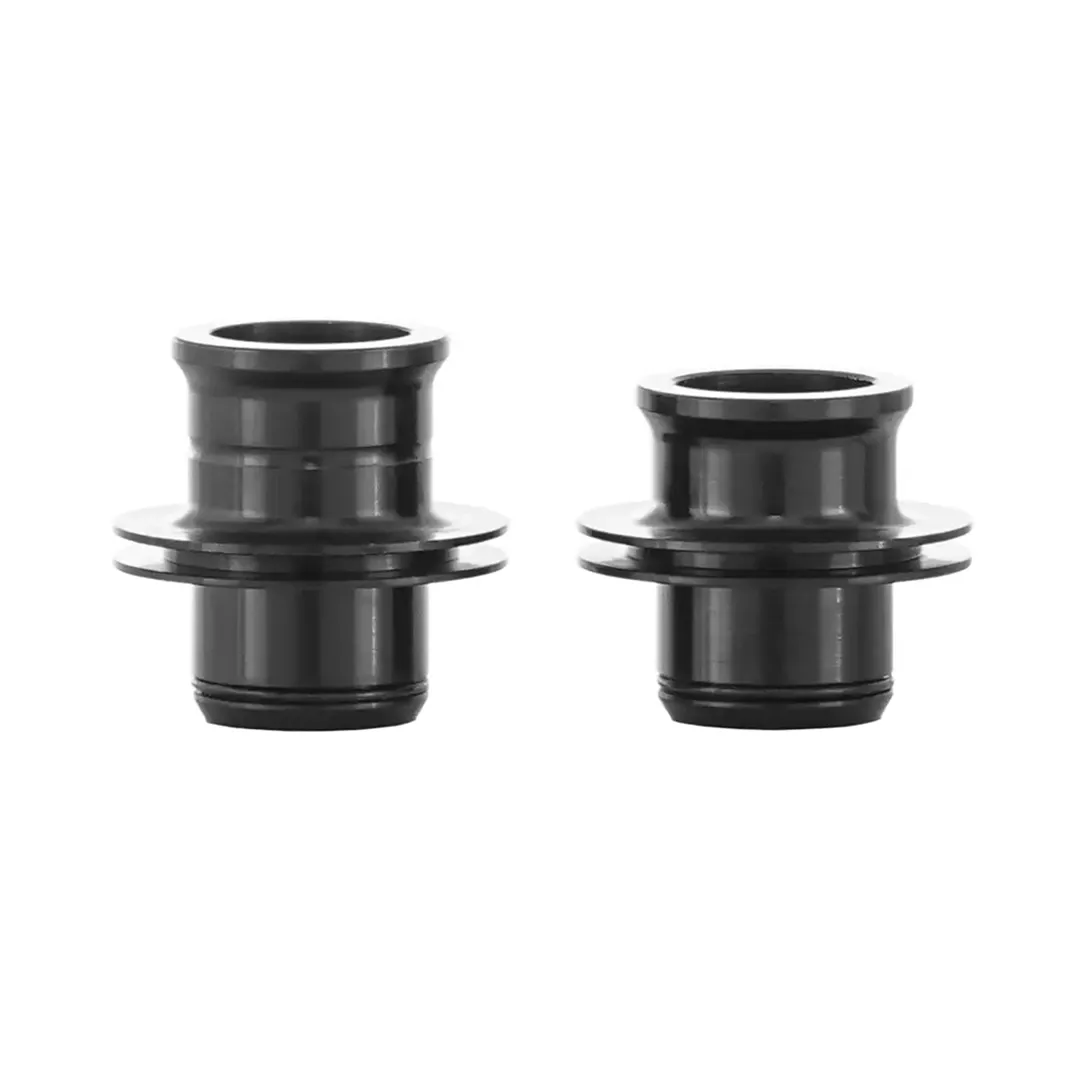

*Images show selected end caps for reference only.

Industry Nine 1/1 hub end caps are available as kits or individual replacements for different front and rear hub configurations.

FRONT HUBS

• 15mm 6B Kit (OEKMA03)
  Includes OEAX1682 and OEAX1683 for 1/1 front 6-bolt hubs.
• 15mm RockShox Torque 6B Kit (OEKMA24)
  Includes OEAX1630 and OEAX1647 for 1/1 front 6-bolt hubs with RockShox Torque Cap-compatible forks.
• 15mm RockShox Torque 6B DS (OEAX1630)
  Single drive-side Torque Cap for 1/1 front 6-bolt hubs.

REAR HUBS

• QR135/141 HG/XD Kit (OEKMA11)
  Includes HAX2631 and OEAX1632 for compatible 1/1 rear hubs.
• 12x148 CL/6B HG/XD Kit (OEKMA14)
  Includes HAX2637 and OEAX1646 for 1/1 rear 6-bolt and Center Lock hubs with HG or XD freehub bodies.
• 12x142/148/157 CL/6B MS Kit (OEKMA16)
  Includes HAX2644 and OEAX1646 for 1/1 rear 6-bolt and Center Lock hubs with Micro Spline freehub bodies.
• 12x148/157 NDS (OEAX1646)
  Single non-drive-side end cap for 1/1 rear 6-bolt and Center Lock hubs.
• 12x142/148/157/177/197 MS DS (HAX2644)
  Single drive-side end cap for 1/1 rear hubs with Micro Spline freehub bodies.
