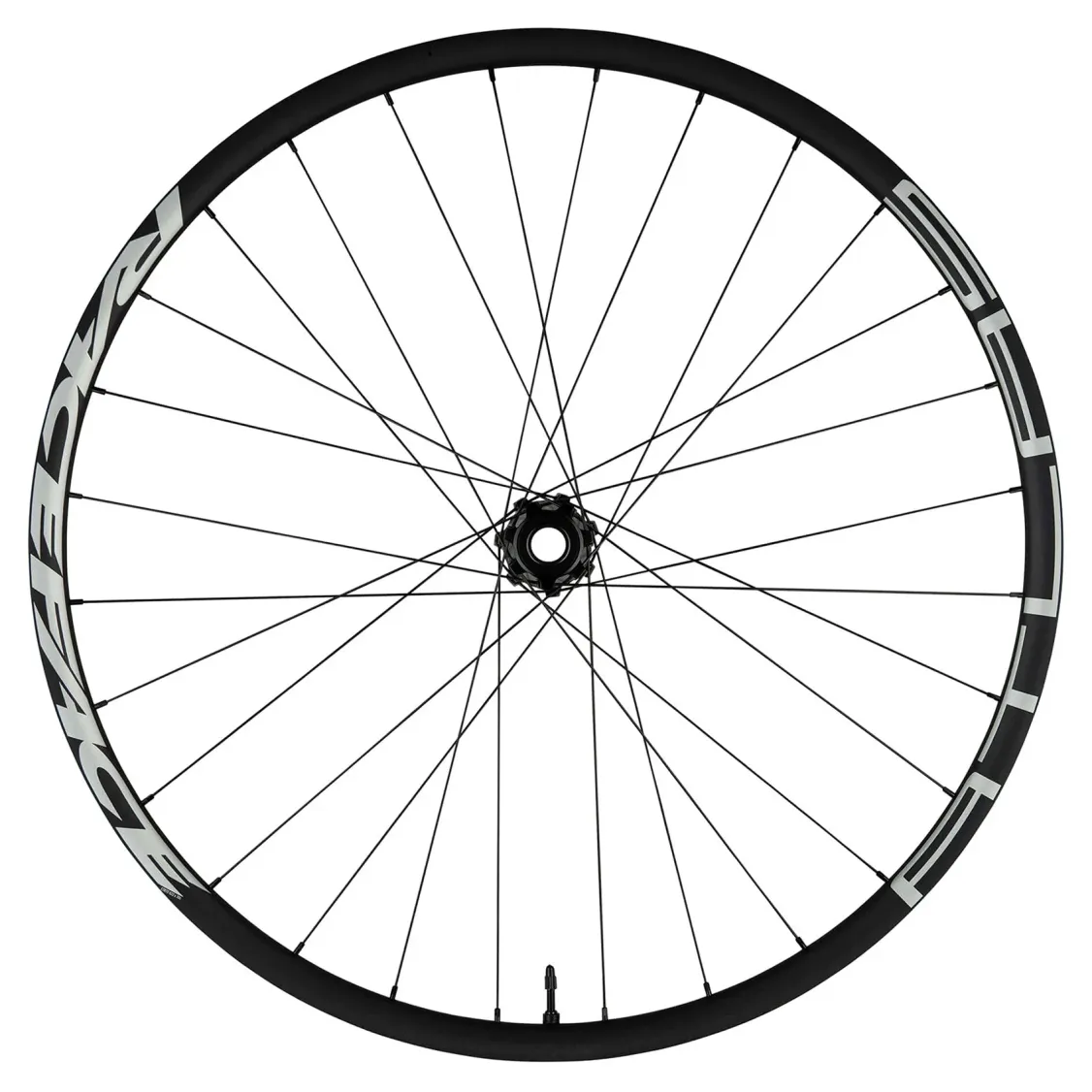

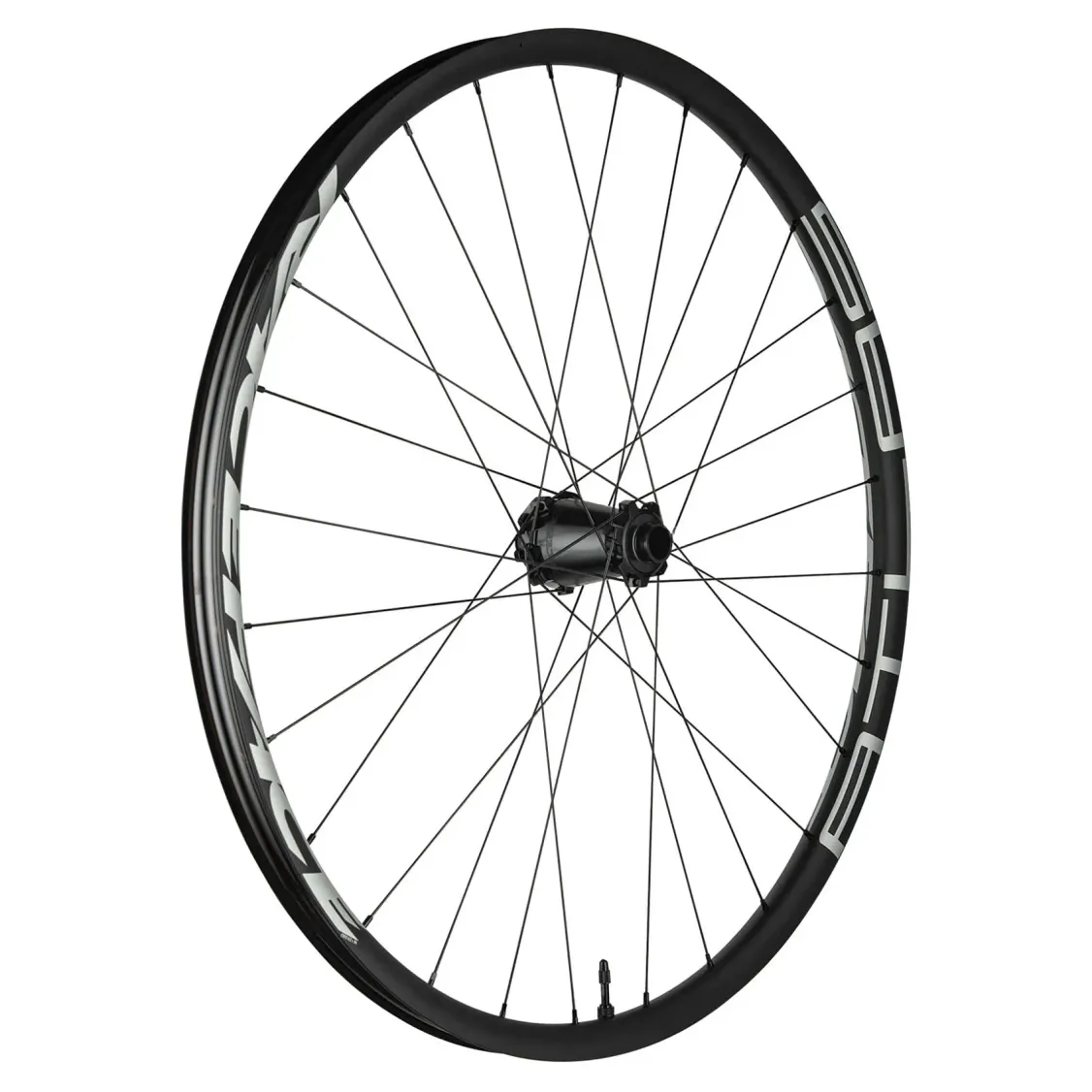

Built with Race Face’s gravity heritage in mind, the Atlas wheel is designed for the toughest downhill runs and the most demanding trails. It delivers the strength and reliability needed to charge through rock gardens, rough lines, and big jumps with confidence.

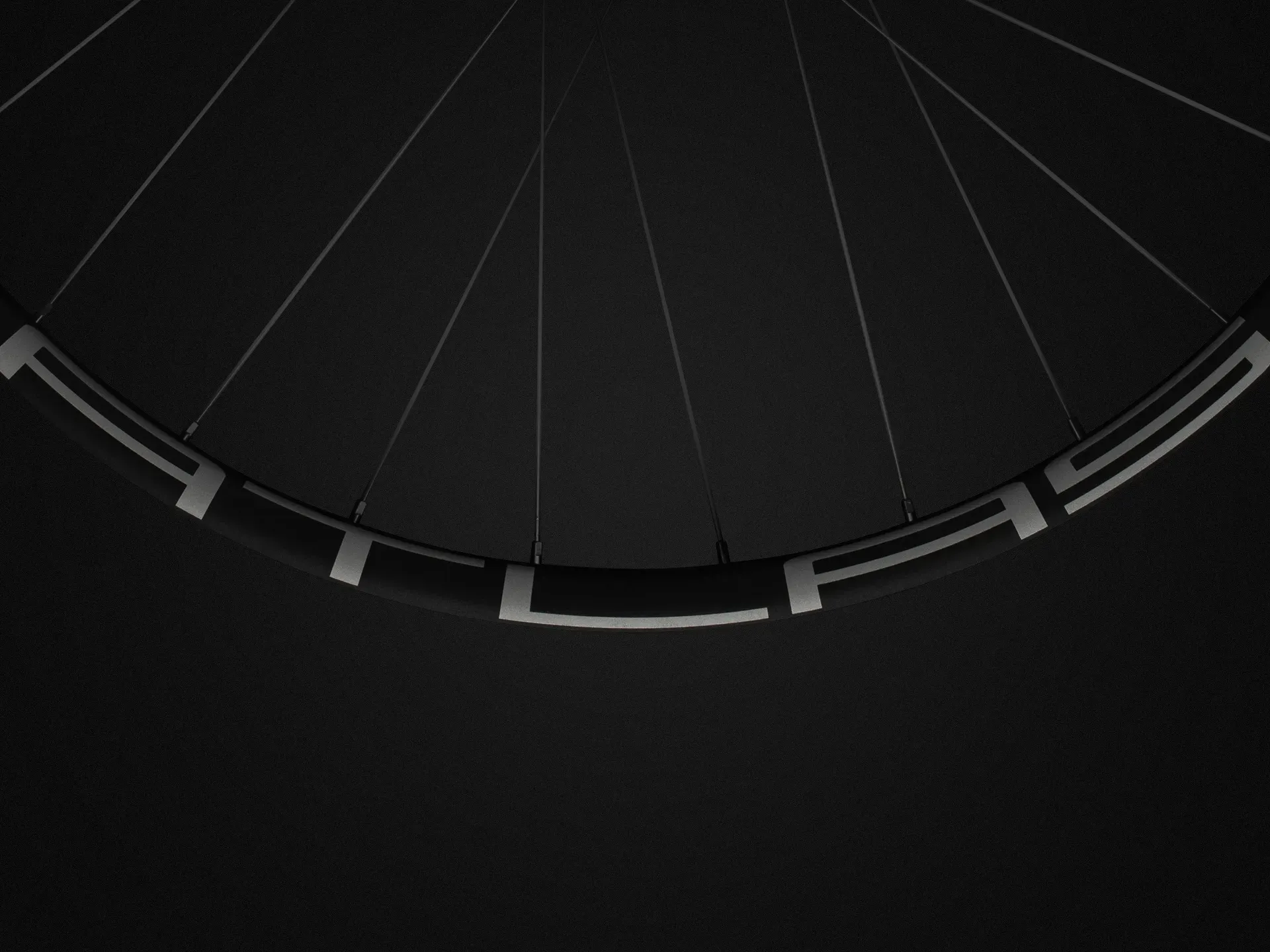

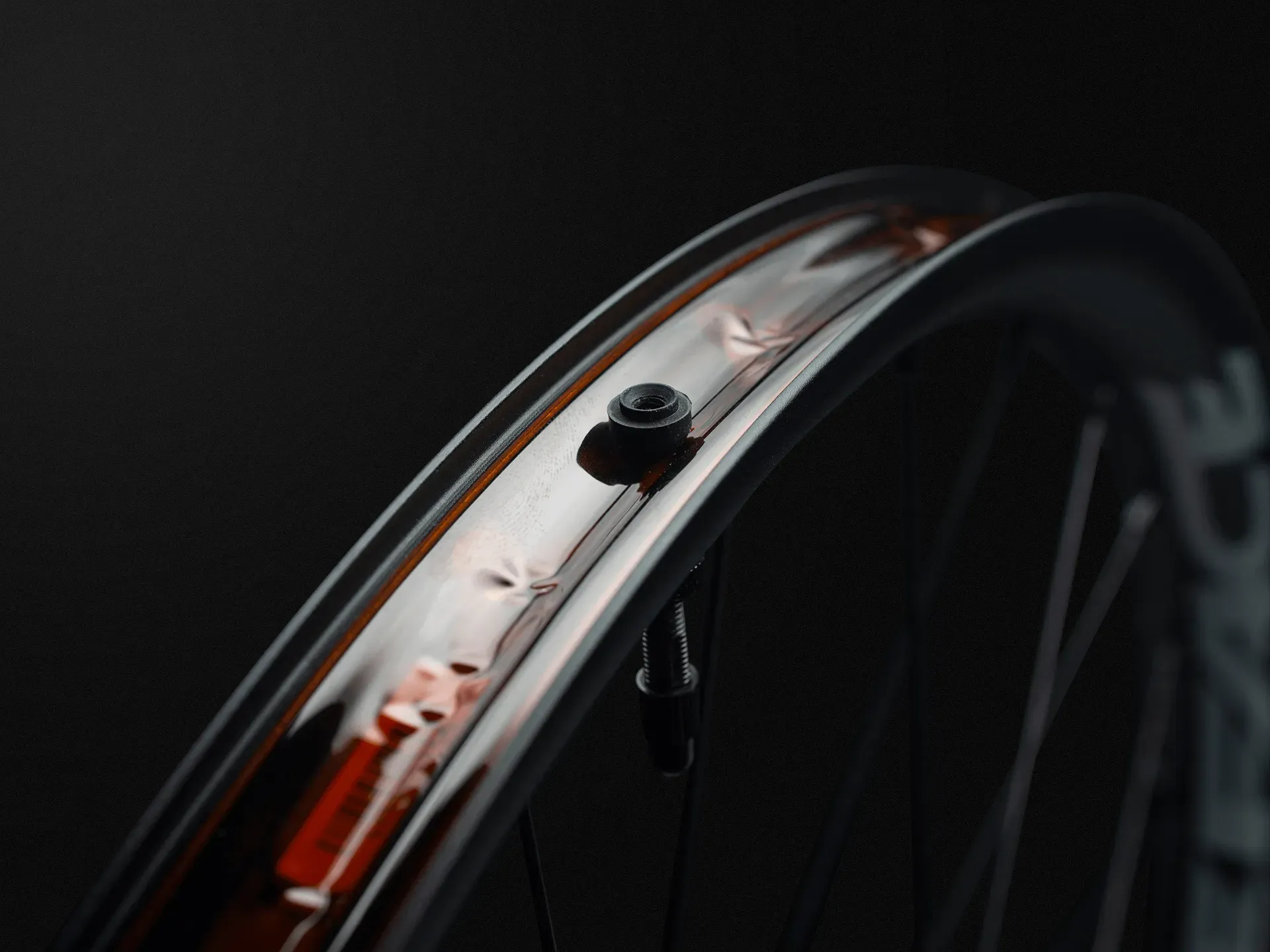

Impact Ready Rim
The Atlas rim uses strong 6069 aluminum with a reinforced bead profile that helps resist dents and flats when charging through rough gravity terrain.

Balanced Spoke Layout
Offset spoke drilling paired with durable double butted straight pull spokes creates a stiff and stable wheel built for hard riding and consistent performance.

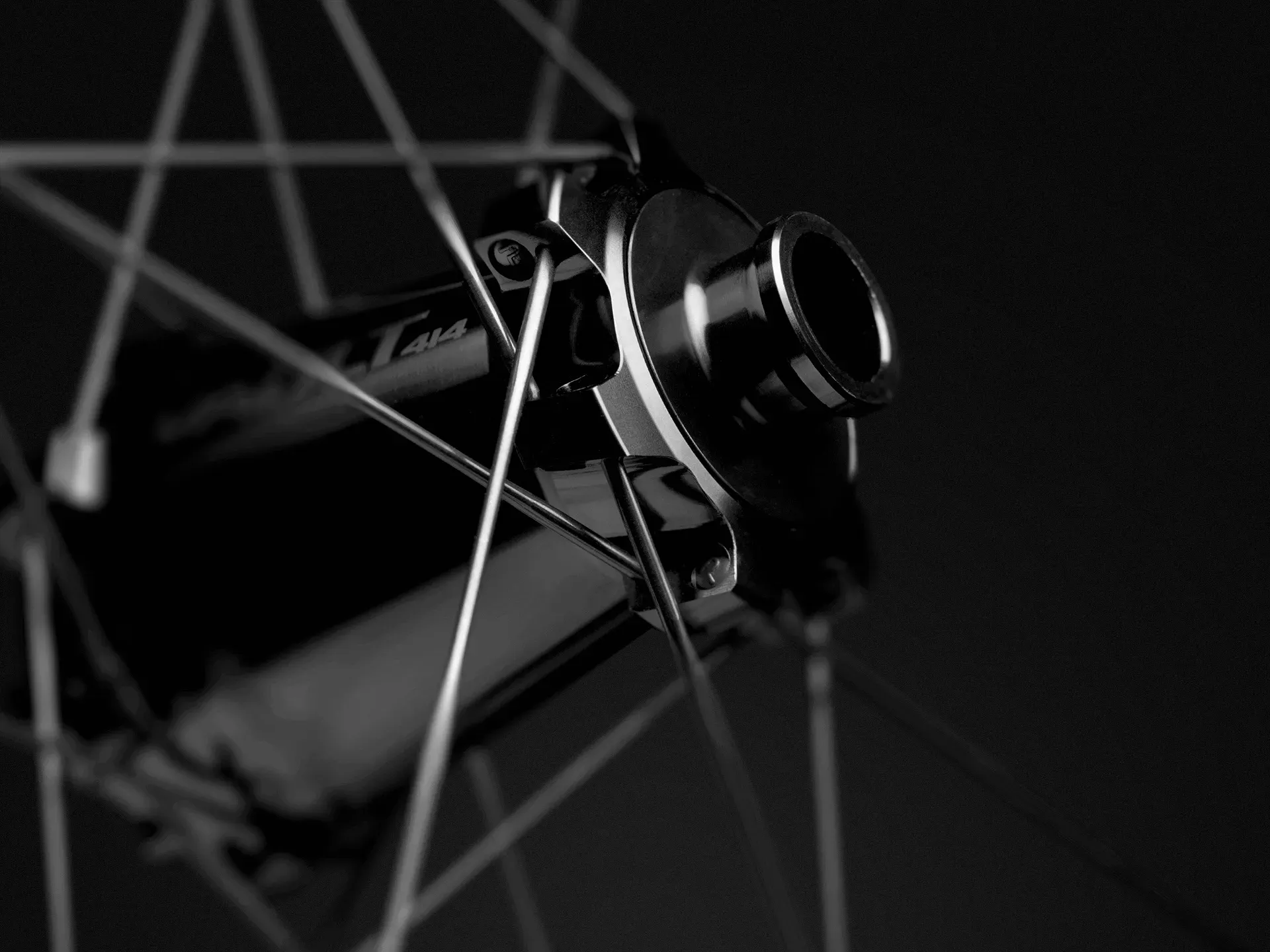

High Strength Vault Hub
The Vault hub features an oversized shell and wide bearing placement for added stiffness, durability, and dependable performance on aggressive trails.

Specifications

Rim

• Diameter: 29"
• Internal Width: 30mm
• Outer Width: 34mm
• Spokes Count: 28
• Material: Aluminum 6069
• Tubeless ready

Hub

• Hub: Vault
• Axle Diameter: 20mm
• Spacing: Boost 110mm
• Spokes Count: 28

Additional Info

• Spoke Head Type: Straight pull
• Spoke Offset: 4.5mm
• Spoke Butting: 2.0/1.8/2.0
• Nipples: Black alloy nipples
• Weight: 2044 g | Weight Conditions: Wheelset
